Three-Phase
Smart Energy Meter SM-34

Designed to meter high value residential and commercial segment of energy consumers in three-phase distribution network prepayment, net-metering and dual energy registers options.
Contact Us
  • Home
  • Smart Energy Meter SM-34

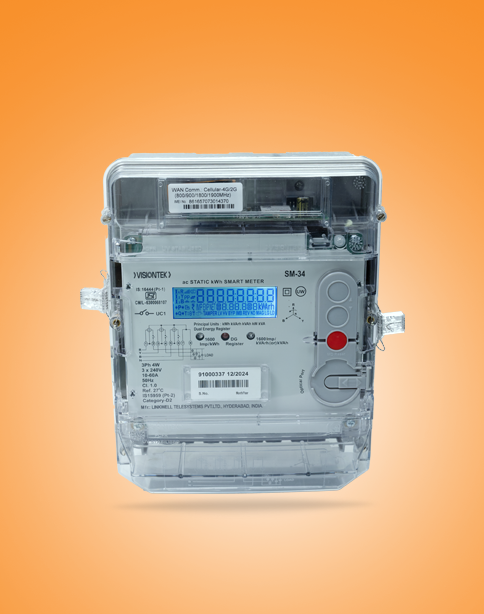

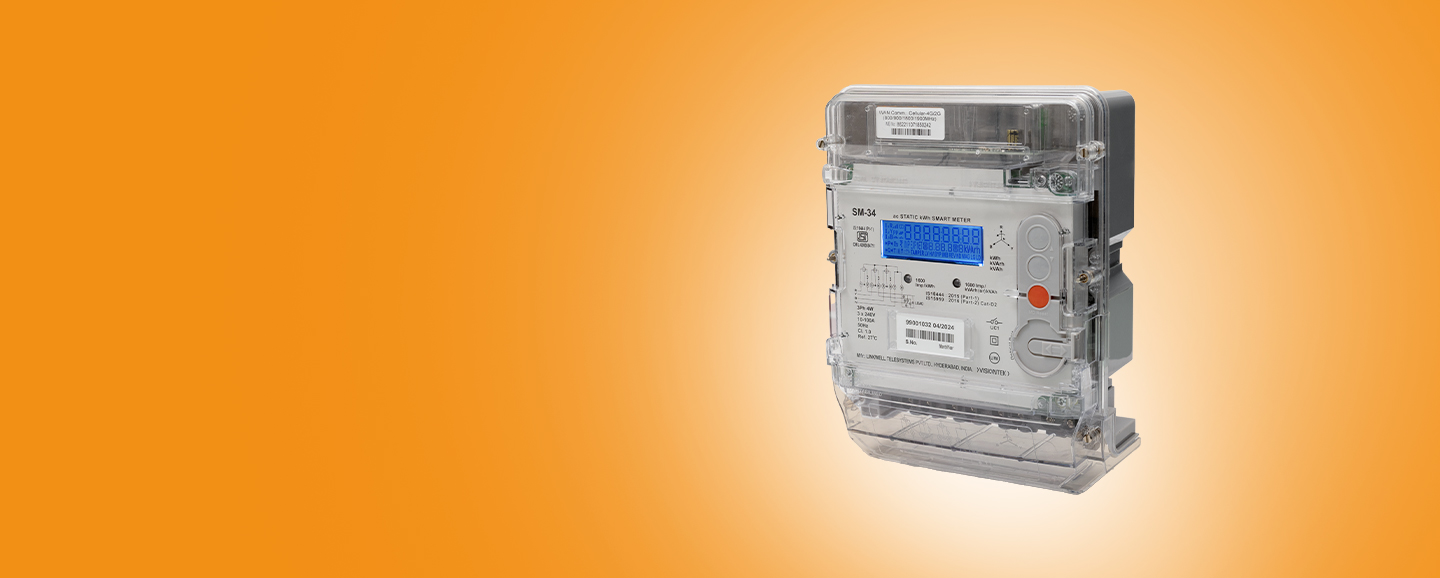

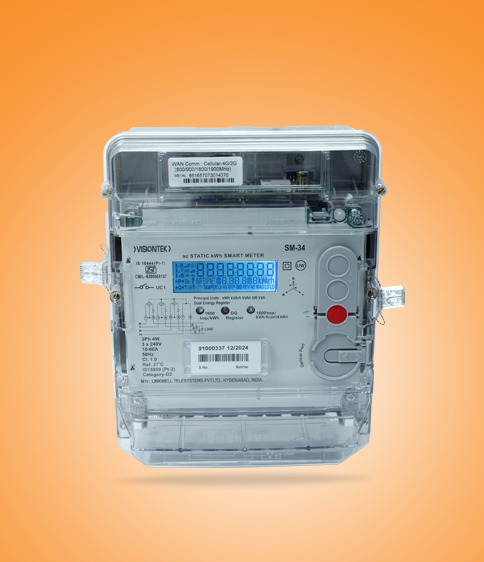

Three-Phase Smart Energy Meter SM-34

  • Smart Meter is an alternating current static watt-hour meter with time of use registers, internal connect / disconnect switches with two-way communication capability. VISIONTEK SM-34 Three Phase Smart Energy Meter from Linkwell is designed to meets high value residential and commercial segment of energy consumers in three- phase distribution network.

    Smart Meters have versatile features that enable the utilities to configure the meter remotely for load shedding in case of emergency/peak load conditions or when the demand is exceeding the supply, download the TOD tariff into the meter, configure to Bi-directional metering (Net Metering), from post-paid to pre-paid mode, etc...

    Smart Meters enable the consumers in managing their loads and empower the consumers to make informed choices about the usage of energy with real time information through mobile-phone apps.

    • Class 1.0 accuracy and compliance with IS/IEC standards
    • LCD for display of measured parameters with legends, load connect/disconnect and communication network indications
    • LED and LCD indications for Calibration, Meter status and data communication
    • Programmable Time of Use metering, Prepaid metering, Bi-directional (Net) metering
    • Programmable load profile capturing, event logging, bill point registers
    • Optical Communication for local meter reading and off-line load connect/disconnect of load switch
    • Field Replaceable GSM/GPRS modem/NBIoT
      Module/LPRF module with 6LoWPAN network protocol for remote meter reading
    • Supports push/pull data mechanism for meter data transfer and lost gasp/first breath/other event alerts
    • Load Connect/Disconnect feature with inbuilt switches
    • Firmware download feature through remote communication
    • Compatible with In-home Display Unit on open protocol on LPRF
    •
