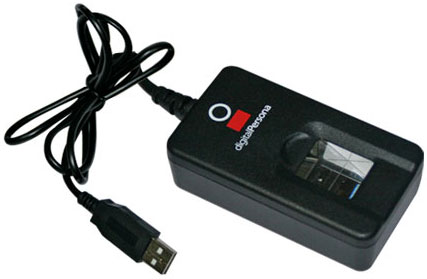

VISIONTEK DP E-Pass is a compact & cost effective solution for student verification for scholarships & Fee reimbursement using DP USB fingerprint reader. It’s a plug and play device with simple user friendly step by step installation process and student authentication.
Key features |
||
 LED |
: | Blue |
| Form Factor |
: | Small and very handy |
| Interface |
: | USB |
| Rotation invariant |
: | Touch it in any direction, it |
| Working conditions |
: | Dry, moist (or) rough fingerprints |
| Certifications |
: | STQC certified figure print scanner |
| Image Quality |
: | 512 mega pixel |
| Encrypted fingerprint data | ||
| Latent print rejection | ||
| Counterfeit finger rejection | ||
| Compatible with Windows® 7, Vista, XP Professional (32 & 64 bit with required Min of SP 3 or later) |
||
Key Specifications |
||
| Pixel resolution |
: | 512 dpi (average x, y over the scan area) |
| Scan capture area |
: | 14.6 mm (nom. width at center) 18.1 mm (nom. length) |
| Reader size (approximate) |
: | 65 mm x 36 mm x 15.56 mm |
| ESD Susceptibility - >15 kV, mounted in case | ||
| Weight - 105 grams | ||
| Interface - USB 2.0 Full-speed High Power Device | Standards Compliance -FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL |
|
For Installation & Download, Click the below link as required
| 1) Download Drivers - 32 bit of Win XP /Vista /7 |  |
|
| 2) Download Drivers - 64 bit of Win XP /Vista /7 | |
|
| 3) User Guide - Install & Use Process and FAQ’s | |
|
